High-strength Steel-wire Belt Bucket Elevator For Vertically
Conveying Bulk Materials
Product Description

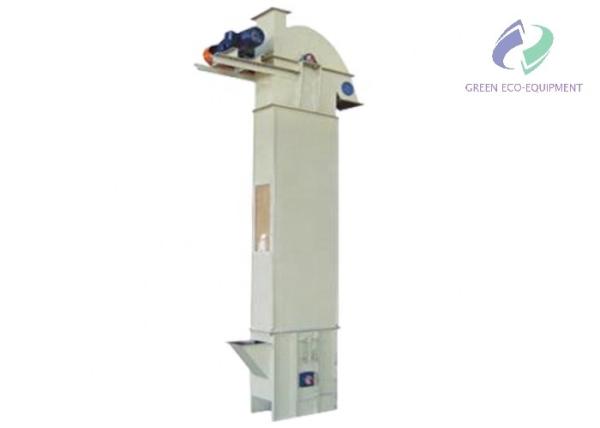

TDG High-strength Steel-wire Belt Bucket Elevator For Vertically
Conveying Bulk Materials is a new-generation product developed by our company through the
combination of learning from new foreign technology and domestic
production and using practice. It is suitable for the vertical
hoisting of dry, bulk, powdery materials or materials of small
granule. It is widely used in the hoisting system of bulk materials
in building materials, metallurgy, chemical industry, food,
electric power and other industries.
In terms of kiln feed into kiln tail, raw material into the
homogenization silo, and cement put in storage in the new dry
process cement plant, it is an ideal piece of alternative equipment
for foreign products of the same specification.
Main Parameters
| TDG800 |
| Bucket type | Sh | Zh |
| Conveying capacity, m³/h | 492 | 361 |
| Bucket | Volume, L | 64 | 47 |
| Distance, mm | 580 |
| Total weight of belt and bucket per meter length, kg/m | 106 |
| Bucket speed, m/s | 1.65 |
| Max. hoisting height, m | 80 |
Sh: Deep bucket: Used for conveying dry, loose, easily thrown powder
or small pieces of materials, such as cement, coal, gravel, grain,
etc.
Zh: Medium-deep bucket: Used for conveying wet and viscous materials,
such as sugar, wet fine sand, crushed coal, fertilizer, etc.
Features
1. Large throughput, high lift height.
2. The transmission device is equiped with vertical shaft reducer
and hydraulic coupler, as well as the reverse stop device, which
can make the transmission device compact and flexible.It can not
only make the equipment run smoothly, but also protect the motor
reducer and traction parts, and also keep the material in stable
state when it is stopped.
3. Long service life, good operational reliability, and the
failure-free time can exceed 30,000 hours.
4. The belt with steel wire rope core, has good toughness, high
strength.
5. The operation and maintenance are convenient, and there are
little vulnerable parts, and the maintenance costs are more than
80% less than that for the common bucket elevator.
6. High-precision structure, high strength and nice appearance.
7. The equipment adopts the heavy hammer tensioning device, which
has constant tensioning force and can help avoid the belt slipping,
thus ensuring the normal operation of the equipment.
Application
Details Show

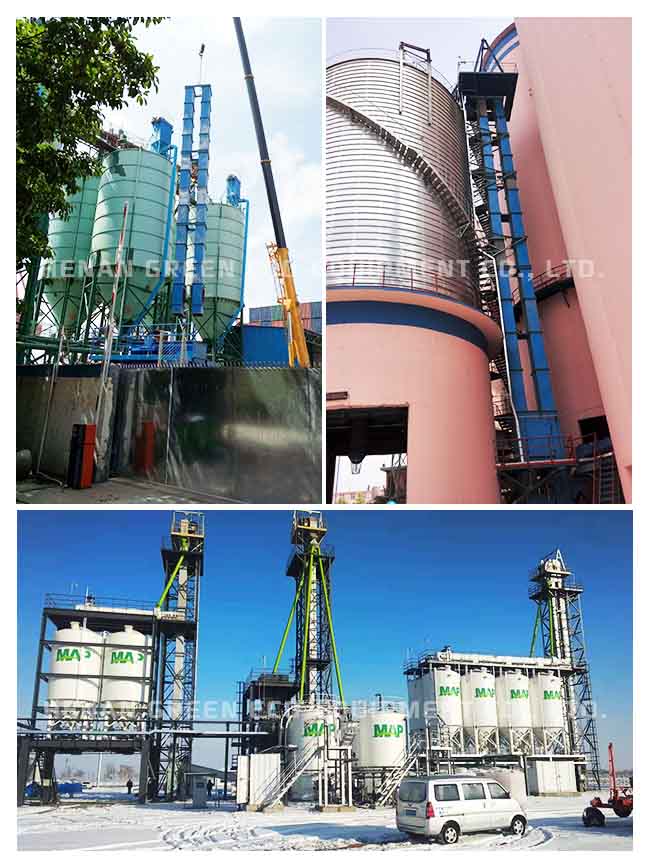

Project Case
