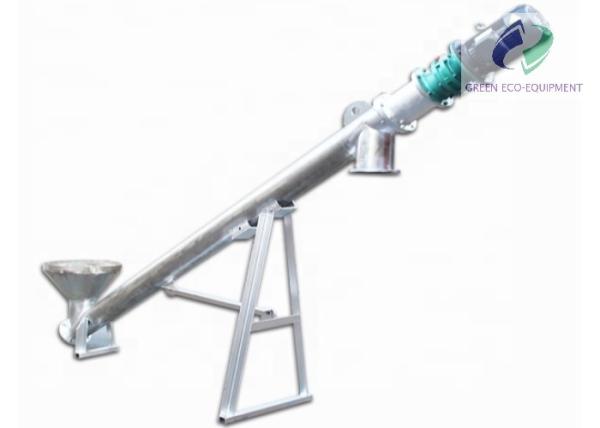

Customizable Food Grade Stainless Steel Powder Screw Conveyor For Food Chemical Industries
Product Description
Tubular screw conveyor is researched and developed according to the
principle of screw conveyor, it can not only evenly transport
materials such as inviscid powder and granule and other materials,
but also can mix material. It is suitable for continuous conveying of loose materials such as
powder, granular and small piece material , which includes clay
powder, coal powder, cement, sand, grain, small piece of coal ,
pebbles, and cast iron filings, etc. And Customizable Food Grade Stainless Steel Powder Screw Conveyor is
made of food grade stainless steel, it is wildly used in food, chemical, grain storage, fertilizer
industries.
Main Parameters
Model | Item | |||||||
Screw diameter (mm) | Conveying distance(mm) | Screw speed (r/min) | largest feed ability (m³/h) | Motor power (kw) | Supporting reducer | Material max size (mm) | Reference weight (t) | |
SID1215 | 120 | 1500 | 20-80 | 1.4 | 1.1 | ZQ250 | 20 | 0.65 |
SID1225 | 2500 | 0.87 | ||||||
SID1615 | 160 | 1500 | 15-75 | 4.8 | 1.5 | ZQ250 | 25 | 0.78 |
SID1625 | 2500 | 1.03 | ||||||
SID2015 | 200 | 1500 | 15-60 | 7.4 | 2.2 | ZQ250 | 30 | 0.92 |
SID2025 | 2500 | 1.23 | ||||||
SID3015 | 300 | 1500 | 10-45 | 21.2 | 3 | ZQ250 | 40 | 1.10 |
SID3025 | 2500 | 1.38 |
Main Features
1. Compact structure, small cross section, light weight.
2. Excellent seal performance and transport efficiency.
3. Flexible technological arrangement, easy to be installed, dismantled and moved, and safe operation.
4. It has the characteristics of high temperature resistance and corrosion resistance, and has a longer service life under the premise of ensuring food safety.
Packing & Shipping
Well-designed packing and transportation ensure that the products
can be delivered intactly to our customers.

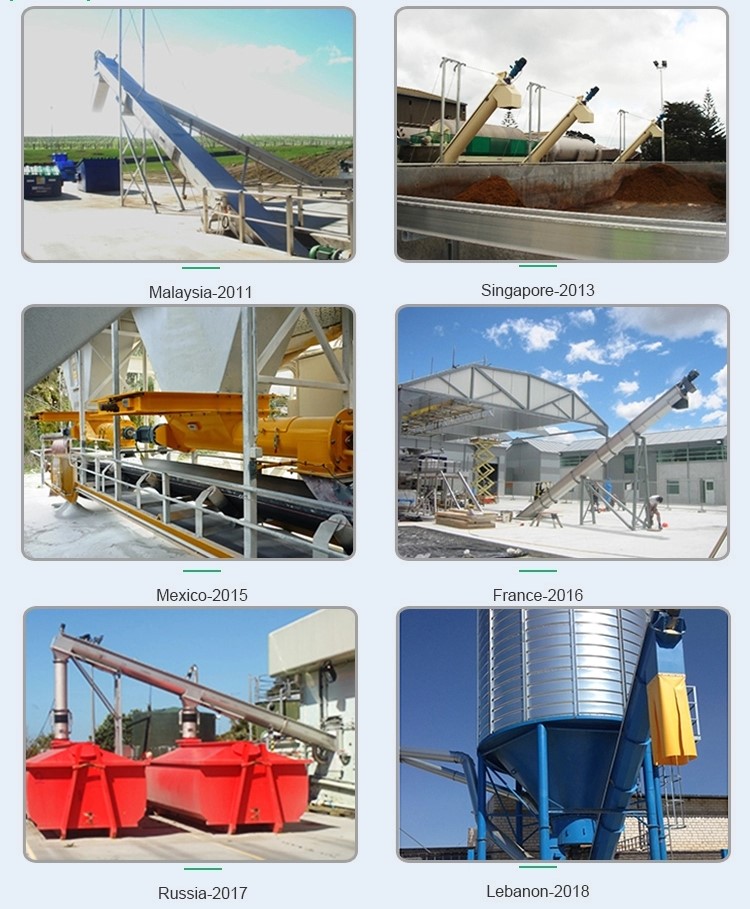

Customer Case
![]() |
