Sidewall Belt Conveyor /Wave-Shaped Apron Conveyor Rubber Belt
Our advantages on Sidewall Belt Conveyor
1). OEM service.
2). More than 30 years experience of conveying industry.Specialized
in various conveyors(0-90 degree transportation),like Mobile Belt
Conveyor,Fixed Belt Conveyor,Heavy Duty Belt Conveyor,Chain
Conveyor,Screw Conveyor,PVC Belt Conveyor,PVC(Rubber) Sidewall Belt
Conveyor etc.
3). Delivery on time.
4). 3% to 10% discounts for new customer(Based on the quantity.)
5). Professional engineer team help you to choose best model for
your project
Product Description

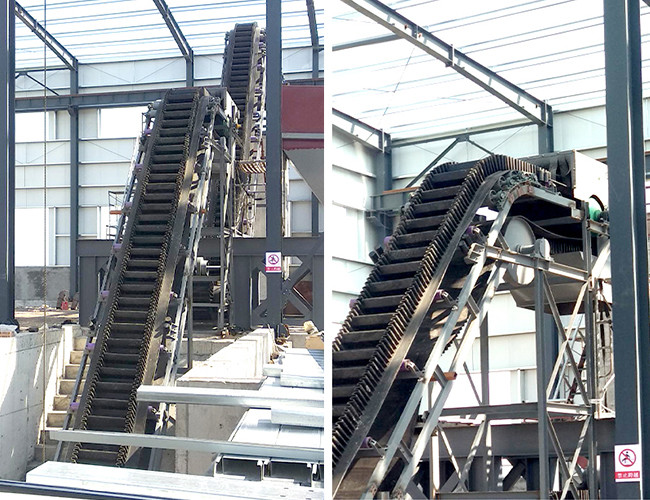

Sidewall Belt Conveyor (also called large dip corrugated belt conveyor) with a large
inclination (90 degrees vertical) transport. So that it is ideal
equipment for achieving large angle conveying. Widely adopted in
underground mining projects, open pit mining, large dump trucks and
food industry etc.

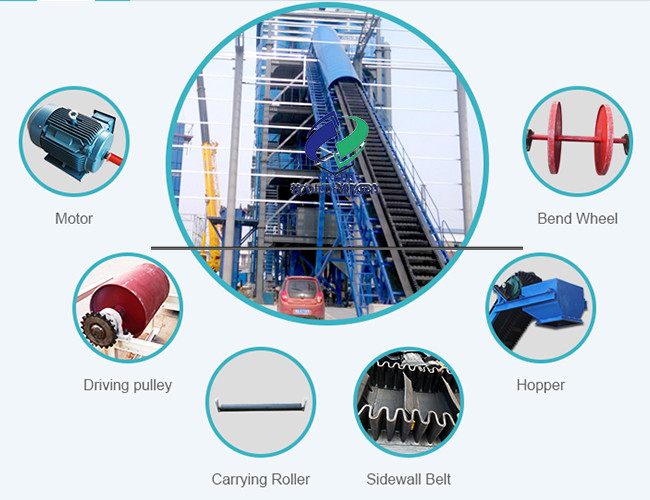

Components of Belt Conveyor
Belt is used for moving and supporting surface on which the
conveyed material rides. It is the tractive element. The type of
belt used need to depend on the nature of materials to be
transported.
Idlers are the supports for the carrying and return stands of the
belt.
Drive that imparts power to one or more pulleys to move the belt
and its loads.
Structure is the support and maintains the alignments of the idlers
and pulleys. Besides, it also supports the driving machinery.
A conveyor belt system uses different types of pulleys like end
pulley, snub pulley, bend pulley etc. The end pulleys are used for
driving and sometimes for making tensioning arrangements. Snub
pulleys increase the angle of wrap thereby increasing the effective
tension in the belt.
The pulley diameter depends on the belt width and belt speed.
Pulleys are used for providing the drive to the belt as well as for
maintaining the proper tension to the belt.
Advantages
1. Low maintenance cost.
2. Large transport capacity, and it can avoid material spilling
effetely.
3. The belt can facilitate switching from horizontal to inclined
conveying and from inclined to horizontal conveying.
4. It saves a lot space as it allows material conveying at 0-90
degree.
Main Parameters
| Roller form | Transmission speed(m/s) | Belt width(mm) |
| 500 | 650 | 800 | 1000 | 1200 | 1400 |
| Capacity(m3/h) |
| Trough idler | 0.8 | 78 | 130 | -- | -- | -- | -- |
| 1.0 | 97 | 164 | 278 | 435 | 655 | 891 |
| 1.25 | 122 | 206 | 348 | 544 | 821 | 1115 |
| 1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 |
| 2.0 | 191 | 323 | 546 | 853 | 1284 | 1748 |
| 2.5 | 232 | 391 | 664 | 1033 | 1556 | 2118 |
| 3.15 | -- | -- | 824 | 1233 | 1858 | 2528 |
| 4.0 | -- | -- | -- | -- | 2202 | 2996 |
| Flat idler | 0.8 | 41 | 67 | 118 | -- | -- | -- |
| 1.0 | 52 | 88 | 147 | 230 | 345 | 469 |
| 1.25 | 66 | 110 | 184 | 288 | 432 | 588 |
| 1.6 | 84 | 142 | 236 | 368 | 558 | 753 |
| 2.0 | 103 | 174 | 289 | 451 | 677 | 922 |
| 2.5 | 125 | 211 | 350 | 546 | 821 | 1117 |
Remark: The conveying capacity in the form is based on the belt speed 1m/s,
and it will vary according to the belt speed.
Working Principle
Sidewall Belt Conveyor /Wave-Shaped Apron Conveyor Rubber Belt
Sidewall Belt Conveyor is composed by two endpoint pulleys and a closed conveyor belt. The
pulley that drives conveyor belt rotating is called drive pulley or
transmission drum; the other one–only used to change conveyor belt
movement direction–is called bend pulley. Drive pulley is driven by
the motor through reducer, and conveyor belt dragging relies on the
friction drag between the drive pulley and the conveyor belt. The
drive pulleys are generally installed at the discharge end in order
to increase traction and be easy to drag. Material is fed on the
feed-side and landed on the rotating conveyor belt, then rely on
the conveyor belt friction to be delivered to discharge end.
Application
Sidewall Belt Conveyor widely used in mining,gravel field,
metallurgy, building materials,chemical industry,mineral
processing,coal mining and other industries.It can convey bulk
material like coal,cement,sand,cereal etc.And can convey lump
material,such as rock.
How to confirm model? CONTACT US!!!
1.The capacity that you require?
2.Whats the material to be conveyed?
3.The conveying length and the width of the belt?
4.The conveying angle?
Packing & Shipping
Packaging:Usually wooden case for small size.Container for big
size.
Delivery time:5-7 working days for small size.10-15 Working days
for big size.
