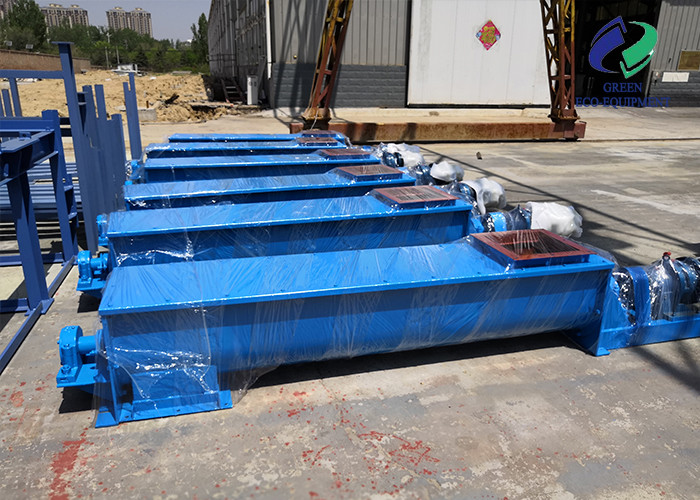

Carbon Steel Automatic Screw Feeder Machine For Cement

    Buy cheap Carbon Steel Automatic Screw Feeder Machine For Cement from wholesalers

    Buy cheap Carbon Steel Automatic Screw Feeder Machine For Cement from wholesalers
    • Buy cheap Carbon Steel Automatic Screw Feeder Machine For Cement from wholesalers
    • Buy cheap Carbon Steel Automatic Screw Feeder Machine For Cement from wholesalers

    Carbon Steel Automatic Screw Feeder Machine For Cement

    Ask Lasest Price
    Brand Name : Green Eco-Equipment
    Model Number : LS315
    Certification : ISO9001:2008/CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : 10~15 work days after receiving fullpayment.
    • Product Details
    • Company Profile

    Carbon Steel Automatic Screw Feeder Machine For Cement

    Factory Price Automatic Screw Feeder Machine For Cement



    Product Description

    Screw Feeder Machine is the ideal solution for hard-to-transport materials ranging from irregularly shaped dry solids such as scrap wood and metals, to semiliquid and sticky materials including pulp, compost,food-processing waste, hospital waste, and wastewater products.


    Screw Feeder Machine consists of rotating shaftless screw inside U-shaped trough having an inlet hopper and outlet spout,being the rest of conveyor completely closed. The feed is pushed into the feed inlet and then moves to the outletspout under thepushing of the screw.
    Carbon Steel Automatic Screw Feeder Machine For Cement


    Main Parameters


    ModelWLS150WLS200WLS250WLS300WLS400WLS500
    Screw diameter(mm)150184237284365470
    Thickness of screw blade14/20mm14/20mm16/20mm18/20mm18/20mm18/20mm
    Thickness of liner board8-10mm10mm10mm10mm10mm10mm
    Diameter of shell180219273351402500
    Operating angle(α)0-45°≤30°≤30°≤30°≤30°≤30°
    Max delivery length(m)121316182225
    Capacity(t/h)2.479131828


    Motor

    ModelL≤7Y90L-4Y100L1-4Y100L2-4Y132S-4Y160M-4Y160M-4
    Power1.52.235.51111
    ModelL>7Y100L1-4Y100L2-4Y112M-4Y132M-4Y160L-4Y160L-4
    Power2.2347.51515

    Features of Screw Feeder Machine

    ♦ Ease of installation, stable operation

    ♦ Automatic controlled, low noise, lowleakage

    ♦ Internal bearings are eliminated, lowmaintenance

    ♦ Long service life, low total cost of ownership

    ♦ Improved conveying efficiency whencompared to other types of conveyors

    ♦ Allows greater flexibility for plant layout due to configurations available


    Application

    The screw feeder machine are the ideal solution for hard-to-transport materials ranging from irregularly shaped dry solids such as scrap wood and metals, to semiliquid and sticky materials including pulp, compost, food-processing waste, hospital waste, and wastewater products.


    Customer Case


    Quality Carbon Steel Automatic Screw Feeder Machine For Cement for sale
