ISO Certificate NE Plate Chain Bucket Elevator Machine Used for Lifting Gravel

Introduction

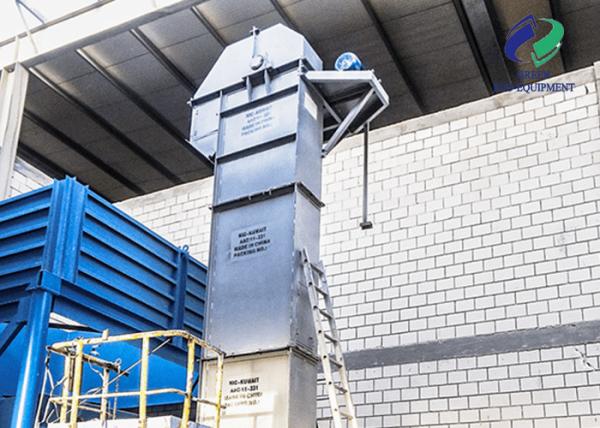

Plate chain bucket elevator is specially designed for vertical displacement of abrasive rough materials. Plate chain bucket elevatoradopts plate sleeve roller chain as traction component and usually be used to transport material with density not more than 2 t/m3 and temperature within 250°C. Plate chain bucket elevator could reach a capacity of 395 m3/h with a vertical displacement of 5~50m.Vertical bucket elevator is highly resistant to wear and can be placed indoor as well as outdoor.

Working Principle and Application

Hopper scoops up materials from the stone bucket below, then is lifted to the top with the conveyor belt or chain, and next it is downward rolled over bypass the wheel on the top and the materials are dumped into the accept slot now by bucket chain or hoist conveyor, and the whole process is over. The driving band of bucket elevator with driver is commonly made of rubber, and it is installed below or above the drive roller and the divert roller. The chain-drive bucket elevator is generally equipped with two parallel transmission chains, above or below which is a drive sprocket and a divert sprocket. Continuous chain or belt bucket elevator for cement is generally equipped with chassis to prevent the dust flying into the bucket elevator.

Technical Parameter

Note: All the parameters are for reference only, we can design and manufacture as per your requirements.

Advantages and Features

1. Application widely.

2. Low driving power, low energy consumption.

3. The whole machine with full sealed design, no dust pollution while running.

4. The machine housing case has good-looking appearance.

5. Driving device configuration could save much space, light weight, with backstop, low noise, running steady.

6. Four kind bucket types could meet different particle size materials.

7. Customized lifting height
