China Manufacturers Heavy Duty Plate Apron Feeder For Coal Industry

Product Description

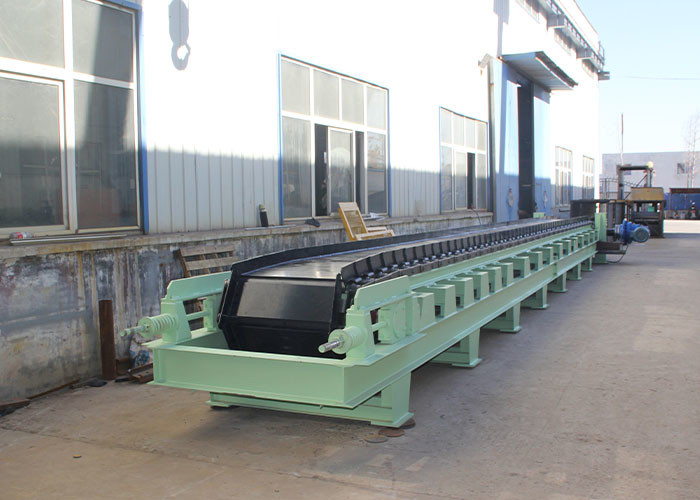

Apron feeder is a large machine that carries materials through the parts of a manufacturing or industrial process. These machines resemble short conveyor belts, and may also be known as plate feeders or apron conveyors. Apron feeder machines allow engineers and process managers to automatically control the volume of materials that are added to a process, and regulate the rate at which these materials are added. To withstand the heavy weight of these types of materials, the belt portion of the apron feeder is made from thick steel trays or pans. Chains along either end of the feeder help move the trays along the conveyor area, and are powered by an industrial motor or engine. In mining, the apron feeder carries rocks and minerals for crushing or further processing.

Working principle

When the apron feeder working, materials that will be carried by the apron feeder are held in a large hopper above one end of the belt. The amount of material that reaches the feeder is determined by the distance between this hopper and the top of the feeder. If the two are placed close together, only a small volume of materials can reach the belt at any given time. When the hopper is placed farther away, materials pour onto the belt more quickly to speed up the feeding process. As the hopper deposits materials onto the apron feeder, the metal pans that make up the belt travel horizontally like a conveyor belt. When the trays reach the end of the belt, they dump, or feed the materials into another vessel. This may be a large bin, sorting machine, grinder, or any other vessel needed to complete the specified process. Workers can adjust the speed of the belt to speed up or slow down the manufacturing process as needed. Workers also can stop the belt to pause feeding and makes any required changes.

Main Parameters

Advantages

1. The apron feeder is widely used for conveying metal ,limestone, gold ore and construction waste ,gypsum etc.,

2. It can bear big pressure under small silo or loader .

3. The speed can be adjusted by frequency conversion control cabinet.

4. Including the feed trough, to prevent the material leakage.

5. Thickness of plate is from 8mm to 20mm.

6. Matched with Such as ABB, Siemens, Flender and SEW etc if required.

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

Customer Visiting

Henan Green Eco-Equipment Co., Ltd was founded at Xinxiang city, Henan province in 2017, the registered capital is 10 million CNY. We are a professional manufacturer of bulk material conveying equipment in China. Now our main products include belt conveyor, drag conveyor, screw conveyor, bucket elevator, apron feeder, vibrating screen, trommel screen and related spare parts. We supplied a lot of bucket elevators and conveyors to our customers in cement plant, power plant, mine and other industry in the world.

We always believe that product quality is the life of the enterprise, she is the source of continuous development and growth of the enterprise, the quality is the first, the quality is the most important, the quality is the life.

After everyone's unremitting efforts and good supports by customers, now we have:

1. Three factories, and workshops are over eight thousand square meters. We have processing equipment as below: 500 tons heavy duty press machine, Milling machine, plasma cutting machine, wire cutting machine, two meters lathe, plate shearing machine, bending machine, drilling machine , polishing machine and welding machine.

2. We have two senior engineers and eight technicists in conveying fields.

3. More than 80 workers in our factories.

4. Supplied our conveyors to 50+ countries.

5. Annual value of production is more than 5 millions US dollar.
