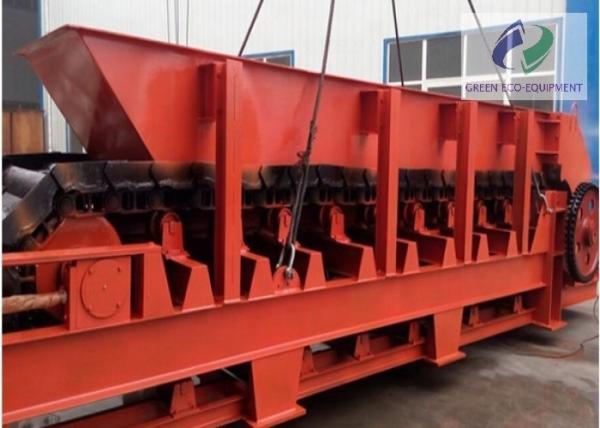

High Efficiency Apron Feeder Machine Chain Plate Feeder For Mine
Product Description
High Efficiency Apron Feeder Machine Chain Plate Feeder For Mine which is driven by cycle running chain, can transport all kinds of bulk
materials along horizontal or inclined (inclination angle is less
than 25 °) direction. Compared with other continuous conveying
machinery, apron feeder can transport material with bigger bulk
density & size, and material with sharp edges with strong abrasion,
especially suitable for conveying high temperature( 600~700 ℃ )
material. Therefore, apron feeder is wildly used in mining,
building materials, metallurgy, coal, chemical and other industries
for transporting sharp, burning, corrosive material.
Main Parameters
| Model | Plate width | Head to tail shaft center distance | Speed | Feed size | Capacity | Power | Reference weight |
| (mm) | (mm) | (m/s) | (mm) | (t/h) | (kw) | (kg) |
| WBL100-6 | 1000 | 6000 | 0.01-0.15 | ≤500 | ≤300 | 18.5 | 15000 |
| WBL120-6 | 1200 | 6000 | 0.01-0.15 | ≤600 | ≤400 | 22 | 16000 |
| WBL125-6 | 1250 | 6000 | 0.01-0.15 | ≤600 | ≤450 | 22 | 18000 |
| WBL140-8 | 1400 | 8000 | 0.01-0.15 | ≤700 | ≤500 | 30 | 29000 |
| WBL150-10 | 1500 | 10000 | 0.01-0.15 | ≤1200 | ≤800 | 37 | 49000 |
Working Principle
The plate feeder drives the power of the motor through the coupling
and the reducer to drive the sprocket shaft to rotate, and the
sprocket teeth are engaged with the chain pin shaft, and the chain
plate is dragged for continuous linear motion. The chain plate is
installed on the frame Support roller and sprocket are supported,
and the chain is properly engaged with the sprocket by adjusting
the tensioning device to complete the purpose of conveying and
feeding. During the operation the motor drive the reducer through
the coupling, and through the eccentric dish and the leaking plate,
which is at the bottom of the frame also between the idlers, to
move in reciprocating linear way, and achieve the feed uniformly.
Advantages
1. Chain plate compressive strength, impact resistance, also
suitable for conveying high-temperature materials.
2. The speed can be adjusted by frequency conversion control
cabinet.
3. Adopting the feed trough, to prevent the material leakage.
4. Good performance-conditioning, no flushing phenomenon of
materials
5. Super-large capacity with combination of crusher equipment.
6. High strength of traction chain, suitable for longer distance
material transportation
7. Materials can be transported along the horizontal direction or
at an oblique Angle.
8. Smooth operation, no noise.
9. It can bear big pressure under small silo or loader.
Details Show
Packing & Shipping
Well-designed packing and transportation ensure that the products
can be delivered intactly to our customers.
Project Case
